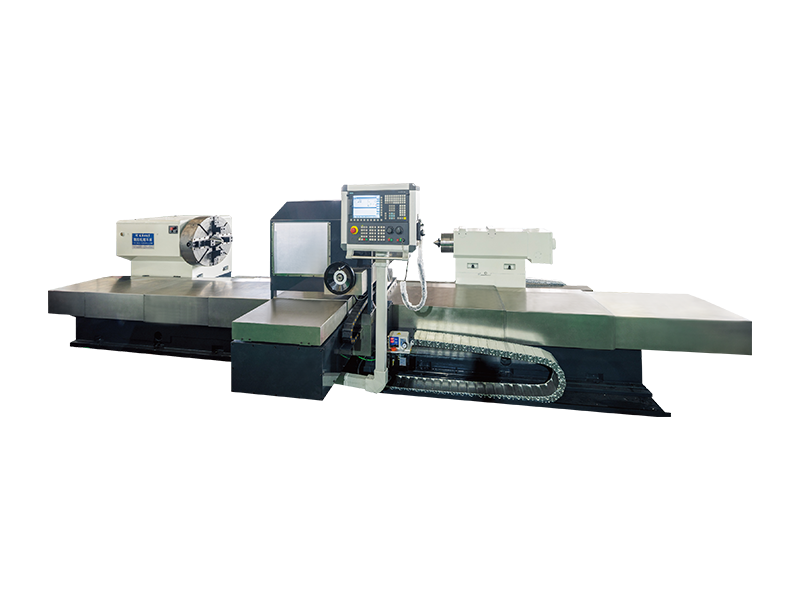

Gravis Pietas Precision CNC Roll et Toss Integrated Lathe

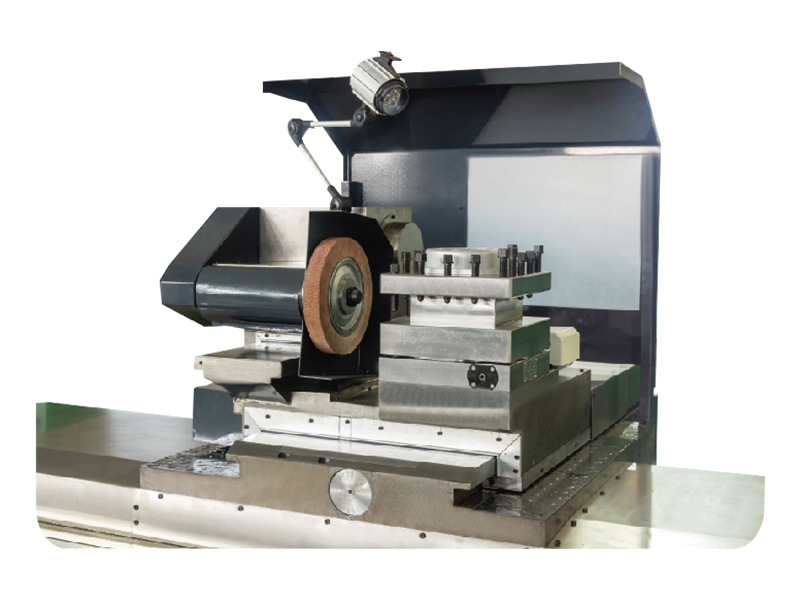

Instrumentum hoc machinae est CNC volumen et iactare torno integrata, maxime adhibita ad officium grave versationis et superficiei expolitio post sustentationem hydrau- licae columnae vivae, mediae cylindrici et laseris classurae. It is also used for the semi-finishing and finishing of cast iron, steel, and non-ferrous metal rolls. The machine comprises two independent servo feed shafts in the transverse direction. Expolitio fabrica ex una parte laminae longitudinalis reticulatae inauguratur et non impedit cum instrumento processus reliquae raeda cibaria transversalis. It is used for turning and polishing, respectively.

The longitudinal and transverse (turning and polishing) movements are driven by high-precision ball screws. Dux cancelli longitudinales et transversus motus cibarii instrumenti possessoris et machinae poliendae fiunt cancellis ductore rectangulis summus rigiditatis, coniunctis cum quattuor stationibus gravi officio electricum instrumentum tenentis et speciale fusum poliendi. This design improves the rigidity and stability of the machine tool during cutting and polishing.

Stipes stipendii gerens utitur duplici ordine radiali brevi cylindrico cylindrico ferens altam subtilitatem et alvi commodam, validam rigiditatem, rotationem laevem, et altam subtilitatem praebens. The tailstock consists of an upper body and a lower body. The upper body is equipped with a spindle, sleeve, and spindle center adjustment mechanism. The lower body features a quick-moving mechanism for the tailstock, with a motor and reducer driving its overall movement. Summus pressura sentinae statio in tergo tailstock installatur, quae pro automatico hydrau densis et laxatis ponitur post caudam in positione, cum tutela interlock.

The tailstock sleeve can be moved by motor drive and manual fine-tuning. Caudarum summitas vim ostentationis habet constringendam, praebens pro visuali commensuratione operis extremitatis torques tensis secundum exigentias. The high stability and high rigidity structural design ensure the overall machining accuracy of the machine tool. Dux movens par tractatur cum plastic tenaces indumento repugnante et in lineamentis systematis lubricationis centralised, quod instrumentum fixum, quantitatis automatismi lubricationis est ut responsio dynamica totius machinae curet. The longitudinal and transverse feed rails are fully protected by stainless steel, which helps maintain motion accuracy over the long term.
