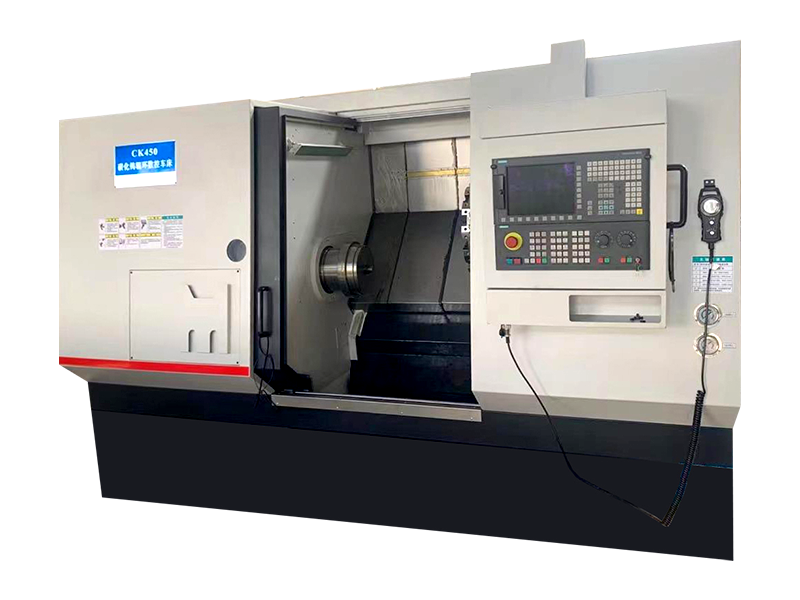

View More >>Jiangsu Dingshun Gravis Officium Machine Instrumentum Co., Ltd. (Nantong Baoshun Machinery Co., Ltd.) anno 2002 instituta est. Inceptio diu versatus est in instrumento apparatus instrumenti ad metallurgicam industriam et ferro conatibus comparandis. Altum fundamentum habet et copiosam experientiam in instrumento instrumenti speciali machinali et est supplementum solutionum pro ferro inceptis. Shanghai 704 Investigationis Institutum Sinarum Navibuilding Industriae Corporation etiam idoneum est, ut magnas investigationes scientificas incepta suscipiat sicut sensores torques et alia elementa professionales. Societas specialitas in XK500 seriem producendi CNC volumen crescens sulcus processus machinae instrumentorum, CK84 series CNC volubilis lesti, CA84 series digitalis ostentus volubilis lesti, CNC volubilis anulus lesti CK450, CXK9550 CNC conversio et machina instrumenta composita, CXK9580 scutella CNC vertens et centrum rotans CA84 series digitalis ostentus volubilis lesti, CNC volubilis anulus lesti CK450, CXK9550 CNC vertens et machina instrumentorum compositorum molendinorum, CXK9580 scutella CNC vertens et centrum rotans CA84 series digitalis ostentus volvens lesta, CNC volubilis anulus CK450 anulus molentis MK001-5, CNC apparatus stridor ZKM150, ZWM150 praecisio universalis machina stridor et alia producta subsidiaria affinia.
Societas plura magna fragmenta instrumentorum habet inceptis domesticis et externis notis comparatis, pro qualitate instrumentorum machinae productae et opportunae traditionis. Per annos, validis technicis viribus, productis maturis, et ratione muneris comprehensivi, producti nostri venditi sunt societatibus ferro maioribus per patriam et mercatus extraneos. Clientes nostri affirmative responderunt et multa diplomata nationalia et iura proprietatis intellectualis independentes consecuti sumus. Societas nostra nunc notam notam incepti in domestico ferro et consilio metallurgico instituti facti notam instituti instrumenti machinalis volvunt industriam.
1.1 Principalis Specification Parameters
| Diameter adductius super lectum machinae instrumentum | mm | 800 |
| In adductius diametro latae laminae | mm | 620 |
| Maximum Machining Longitudo (Distantia inter Centra Duo) | mm | 1000 |
| MaximumPondus of Workpiece | kg | 3000 |
| Machina Tool Bed Angle | Gradus | 45 |
1.2 fusum et Coegi
| Fusum Bore | mm | 120 |
| Fusum Front Support Diameter | mm | 180 |
| Fusum Volo Series | | Sine Level |
| Fusum Volo Ranges | r/min | 2-400 |
| Motor principalis Power (Continuus) | kW | 22 |
| Fusum Continuum Torque | Nm | 2500 |
| Fusum finem Latin | | A211 |
| Hydraulica Lorem tensis Sleeve | | Roller Ring Matching |
1.3 Feed Drive
| Z-axis (longitudinalis) Trailing Plate Motus Distantia | mm | 1000 |
| X-axis (horizontalis) Trailing Plate Motus | mm | 410 |
| Z velocitate movens / X * | mm/min | 8000 |
| Pascite Mobilitate Range Z/X | mm/min | 0.001-2000 |
| Motor Torque Z/X | Nm | 27/27 |
| Maximum pascite Force Z/X* | N | 20000 |
| Minimum Profecti Unit / Consilium | mm | 0.001 |
1.4 Super Dimensiones et pondera machinae Tools
| Apparatus Mors Apparatus Location (Longitudo * Latitudo * Altitudo) | mm | 4725×2175×2365 |
| Weight | t | About 8T |
2. Subtilitas machinae tool
2.1 Opus Sagaciter (Latin Specimen)
| Rotunditas exterioris circuli Conclusio Conversus | mm | 0.005 |
| Superficies asperitas Circuli exterioris Conclusio Conversus | | Ra0.8 |
| Cylindricitas Circuli exterioris Conclusio Conversus | mm | 0.02/300 |
| Perpendicularitas Circuli Exterioris Finis Finis | mm | 0.01/100 |
2.2 Pelagus Geometrica accuratio Machinae Instrumenti
| Motus periodici Axial Fusum | mm | 0.005 |
| Radialis Runout de Bore-foraminis Spindle | mm | Prope finem 0.015, Absit 0.020 |
| Turret Repetita Positioning Accuracy | mm | 0.005 |
